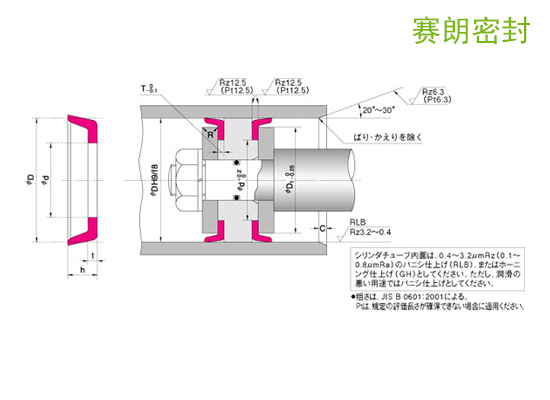

日本NOK-CPH型活塞密封
詢價致電：0769-22210391 傳真：0769-22217692 手機：13450082237
| 密封件公稱尺寸 | 腔體尺寸 | NOK零件號 | NOK材料標志 | ||||||||
| D | h | t | d | φD | φD1 | T | φd | R | C | ||
| 30 | 8 | 2.5 | 13 | 30 | 23 | 2.5 | 13 | 1.5 | 7 | CC0019C3 | A104 |
| 10 | 2.5 | 12 | 30 | 23.5 | 2.5 | 12 | CC0020C0 | A103 | |||
| 10 | 2.5 | 15 | 30 | 23 | 2.5 | 15 | CC0020C1 | A102 | |||
| 35 | 10 | 2.5 | 18 | 35 | 28.5 | 2.5 | 18 | CC0026C0 | A102 | ||
| 40 | 8 | 2.5 | 16 | 40 | 33 | 2.5 | 16 | CC0034C1 | A104 | ||
| 10 | 2.5 | 20 | 40 | 33.5 | 2.5 | 20 | CC0035C0 | A102 | |||
| 42 | 12 | 3 | 23 | 42 | 34 | 3 | 23 | 2 | CC0040C0 | A505 | |
| 45 | 10 | 2.5 | 25 | 45 | 38.5 | 2.5 | 25 | CC0044C0 | A102 | ||
| 50 | 12 | 3 | 25 | 50 | 41.5 | 3 | 25 | CC0055C1 | A104 | ||
| 55 | 10 | 3 | 40 | 55 | 48 | 3 | 40 | CC0067C0 | A103 | ||
| 60 | 8 | 2.5 | 40.5 | 60 | 54 | 2.5 | 40.5 | CC0074C0 | A103 | ||
| 12 | 3 | 30 | 60 | 51 | 3 | 30 | CC0077C0 | A505 | |||
| 65 | 13 | 3.5 | 34.5 | 65 | 56 | 3.5 | 34.5 | CC0096C0 | A104 | ||
| 70 | 12 | 3 | 38 | 70 | 62 | 3 | 38 | CC0106C2 | A505 | ||
| 75 | 12 | 3 | 38 | 75 | 66 | 3 | 38 | CC0117C1 | A104 | ||
| 80 | 15 | 4 | 40 | 80 | 70 | 4 | 40 | CC0132C0 | A505 | ||
| 16 | 4 | 40 | 80 | 69 | 4 | 40 | CC0134C0 | A102 | |||
| 90 | 15 | 4.3 | 38 | 90 | 80 | 4.3 | 38 | 8 | CC0156C0 | A505 | |
| 16 | 4 | 45 | 90 | 79.5 | 4 | 45 | 3 | CC0157C0 | A102 | ||
| 17 | 5 | 50 | 90 | 77 | 5 | 50 | CC0159C0 | A104 | |||
| 100 | 15 | 4.3 | 38 | 100 | 88 | 4.3 | 38 | CC0171C0 | A104 | ||
| 16 | 4 | 50 | 100 | 89 | 4 | 50 | CC0174C5 | A104 | |||
| 16 | 4 | 55 | 100 | 89 | 4 | 55 | CC0174C4 | A505 | |||
| 120 | 16 | 4 | 60 | 120 | 109 | 4 | 60 | CC0207C0 | A102 | ||
| 16 | 4 | 70 | 120 | 109 | 4 | 70 | CC0207C1 | A104 | |||
| 125 | 16 | 5 | 75 | 125 | 115 | 5 | 75 | 4 | CC0219C0 | A104 | |
| 130 | 20 | 5 | 80 | 130 | 116 | 5 | 80 | CC0230C1 | A104 | ||
| 150 | 20 | 5 | 75 | 150 | 136 | 5 | 75 | 11 | CC0255C0 | A102 | |
| 20 | 5 | 100 | 150 | 138 | 5 | 100 | CC0255C2 | A505 | |||
| 180 | 20 | 5 | 90 | 180 | 166.5 | 5 | 90 | CC0282C0 | A102 | ||
| 25 | 5 | 80 | 180 | 166 | 5 | 80 | CC0285C0 | A104 | |||
| 200 | 20 | 5 | 150 | 200 | 187 | 5 | 150 | CC0293C5 | A505 | ||
| 205 | 23 | 4 | 134 | 205 | 190 | 4 | 134 | CC0303C1 | A103 | ||
| 257 | 22 | 5.5 | 192 | 257 | 245 | 5.5 | 192 | 14 | CC0328C1 | A103 | |
